Biss Descrambling DVB IP Gateway DVB S2 / S / T / T2 / C / ATSC T / ISDB T Tuner To IP SPTS Gateway

Name: Biss Descrambling DVB IP Gateway DVB S2 S T T2 C ATSC T ISDB T Tuner To IP SPTS Gateway
Brand: Colable
Price: 1 USD

Buy cheap Biss Descrambling DVB IP Gateway DVB S2 / S / T / T2 / C / ATSC T / ISDB T Tuner To IP SPTS Gateway product

Brand Name : Colable

Model Number : COL5011P

Place of Origin : Made in China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T(Wire Transfer), Western Union etc

Supply Ability : 500sets per Month

Delivery Time : 2-5 working days

Packaging Details : Standard Export Carton with foam

Product name : DVB-S2 DVB to IP Gateway

Input : 4/8/12/16/20/24 Tuner + 2*ASI

Tuner Optional : DVB-S/S2/T/T2/C/ATSC-T/ISDB-T

Output : 256*SPTS + 2*ASI

IP Protocol : UDP and RTP/RTSP

Features : Biss Descrambling

Management : WEB NMS

Applications : Digital TV Headend system

Contact Now

Biss Descrambling DVB IP Gateway
DVB-S2/S/T/T2/C/ATSC-T/ISDB-T Tuner to IP SPTS Gateway
Model: COL5011P

Outline

COL5011P DVB to IP gateway is mainly used for digital TV head-end interface conversion equipment, the device integrates demodulation and gateway functions in one, can simultaneously demodulate and package up to 24 Tuner input TS stream into an IP packet, Supports 2ASI inputs at the same time, output through different IP address and port number and ASI output, support SPTS and MPTS output at the same time.

Features

Decode MPEG-2 and MPEG-4 transport streams and encapsulate them into IP packets
Support 256 SPTS output and 4 MPTS output
Supports 4/8/12/16/20/24 Tuner inputs
Supports 2 ASI inputs
Supports 2 independent ASI outputs
Support IP output, UDP/RTP protocol, support unicast/multicast
Support LCD and button functions
Support network management (Web)

Specifications

Input	4/8/12/16/20/24*DVB-C/DVB-T/ATSC-T/ISDB-T tuners +2ASI
Tuner Section	DVB-S/S2	Input Frequency	950-2150MHz
		Symbol rate	DVB-S: QPSK 2~45Mbauds; DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds
		Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
		Constellation	QPSK, 8PSK
	DVB-T/T2	Frequency In	30MHz ~999.999 MHz
	DVB-T/T2	Bandwidth	6/7/8 M bandwidth
	ATSC-T	Input Frequency	54MHz~858MHz
	ATSC-T	Bandwidth	6M bandwidth
	ISDB-T	Input Frequency	30-1000MHz
	DVB-C	Standard	J.83A(DVB-C), J.83B, J.83C
		Frequency In	30 MHz~1000 MHz
		Constellation	16/32/64/128/256 QAM
Output	256 SPTS IP mirrored output over UDP and RTP/RTSP protocol through IP port, Unicast and Multicast
Output	2 ASI output
BISS Descrambling	Mode 1, Mode E (Up to 850Mbps) (descramble individual program)

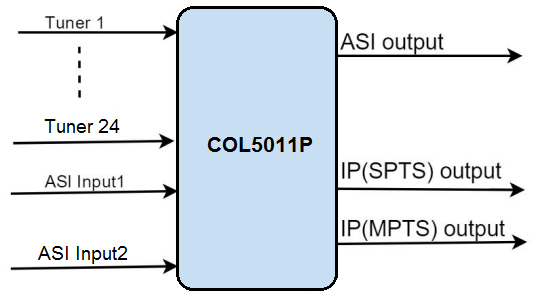

Principle Chart:

Order reference:

Input tuner	4 tuner	8tuner	12tuner	16tuner	20tuner	24tuner
DVB-S2	COL5011P-4S	COL5011P-8S	COL5011P-12S	COL5011P-16S	COL5011P-20S	COL5011P-24S
DVB-T2	COL5011P-4T	COL5011P-8T	COL5011P-12T	COL5011P-16T	COL5011P-20T	COL5011P-24T
ATSC	COL5011P-4A	COL5011P-8A	COL5011P-12A	COL5011P-16A	COL5011P-20A	COL5011P-24A
ISDB-T	COL5011P-4I	COL5011P-8I	COL5011P-12I	COL5011P-16I	COL5011P-20I	COL5011P-24I
DVB-C	COL5011P-4C	COL5011P-8C	COL5011P-12C	COL5011P-16C	COL5011P-20C	COL5011P-24C

Packing for Tuner to IP Gateway

Digital CATV & IPTV System

Certificates

Colable Electronics co.,ltd

Specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Standing in digital system solution more than 10 years, with reliable Team.
Our products: FTA & Descrambler Satellite Decoder, Encoder, Multiplexer, Scrambler, Modulator, Set Top Box etc.
Payment: Wire Transfer (T/T), Western Union, Paypal, Trade Assurance etc.
Delivery Date: 2-5 working days
Our services: Life-long Technical support, remote assistance
Warranty: 1 year for headend & STB

Please feel free to ask if you have any questions. Welcome !!!
